Installation Guide 🚀

⚠️ Pre-Alpha Stage Warning

OMCP is currently in pre-alpha development stage. This means:

Features may change significantly between versions
Breaking changes can occur without notice
Documentation may be incomplete or outdated
Bugs and unexpected behaviors are likely

We appreciate your patience and feedback as we work toward a stable release!

Installing from GitHub 📦

Prerequisites

Git
Git LFS

uv (Python package installer)

On MacOS/Linux

curl -LsSf https://astral.sh/uv/install.sh | sh

On Windows

powershell -ExecutionPolicy ByPass -c "irm https://astral.sh/uv/install.ps1 | iex"

Python 3.13 or higher (Let UV install and manage python versions within a virtual environment)

Step 1: Clone the Repository

git clone https://github.com/vvcb/omcp.git
cd omcp

Step 2: Install the package with dependencies

UV automatically creates the virtual environment with the correct python version and dependencies.

With DuckDB Support (Default)

uv sync --extra duckdb

With PostgreSQL Support

Warning

Not implemented yet.

uv sync --extra postgres

Step 3: Activate the virtual environment

source .venv/bin/activate  # On Windows use: .venv\Scripts\activate

Using the Synthetic Database 🗄️

OMCP comes with a synthetic OMOP database (located at /synthetic_data/synthea.duckdb) for testing and development purposes. This database follows the OMOP Common Data Model and contains fictional patient data available at Synthea.

Retrieving Synthea.duckdb

Since the database is a rather large file, the actual database has been replaced by a Git LFS pointer, you should see something like this inside synthea.duckdb:

version https://git-lfs.github.com/spec/v1
oid sha256:d753b619a8650c966ce219daa35b4126fb9307b790e49f0244646cb3b796feab
size 21508096

to retrieve the database:

git lfs install

and then:

git lfs pull

Setting Up the Environment Variable

Create a .env file in your project root with the connection string:

echo 'DB_CONNECTION_STRING="duckdb:///full/path/to/omcp/synthetic_data/synthea.duckdb"' > .env

Or set it directly in your environment:

# Linux/Mac
export DB_CONNECTION_STRING="duckdb:///full/path/to/omcp/synthetic_data/synthea.duckdb"

# Windows (Command Prompt)
set DB_CONNECTION_STRING=duckdb:///full/path/to/omcp/synthetic_data/synthea.duckdb

# Windows (PowerShell)
$env:DB_CONNECTION_STRING="duckdb:///full/path/to/omcp/synthetic_data/synthea.duckdb"

Using the Database for Experiments

The synthetic database contains a complete OMOP CDM schema with fictional patient data. You can:

Explore tables like person, condition_occurrence, drug_exposure, etc.
Run queries against it to test your applications
Use it as a sandbox for learning the OMOP data model

It is easy to do this using the DuckDB UI by running the following command from the /synthetic_data directory.

duckdb -ui synthea.duckdb

Warning

DuckDB does not allow multiple processes to open a connection to the database at the same time when at least one of them has write access. To avoid running into problems, close any open connections to the database before running the MCP server.

Integrating with Claude Desktop 🤖

OMCP provides a Model Context Protocol server that can integrate with Claude Desktop.

Step 1: Install Claude Desktop

Download and install Claude Desktop from the official website. On Linux, use https://github.com/aaddrick/claude-desktop-debian/ or similar until an official release becomes available.

Step 2: Configure Claude Desktop to Use OMCP

Open or create the Claude Desktop configuration file:

# Linux
mkdir -p ~/.config/Claude
nano ~/.config/Claude/claude_desktop_config.json

# macOS
mkdir -p ~/Library/Application\ Support/Claude
nano ~/Library/Application\ Support/Claude/claude_desktop_config.json

# Windows
notepad %APPDATA%\Claude\claude_desktop_config.json

Add the following configuration:

{
  "mcpServers": {
    "omop_mcp": {
      "command": "uv",
      "args": [
        "--directory",
        "/ABSOLUTE/PATH/TO/PARENT/FOLDER THAT CONTAINS main.py",
        "run",
        "main.py"
      ]
    }
  }
}

Replace /ABSOLUTE/PATH/TO/PARENT/FOLDER THAT CONTAINS main.py with the actual path to your OMCP installation.

Step 3: Launch Claude Desktop

Start Claude Desktop and the OMCP server should automatically be available for use. You can verify the connection by asking Claude to query the OMOP database.

Integrating with Localhost models 🦙

Step 1: Install Ollama

Download and install Ollama from the official website. To check if Ollama has been installed properly, open a terminal and type:

ollama --version

you should see something like this in your terminal: ollama version is 0.6.8

Step 2: Pull a model from Ollama

Go to the Ollama models and copy the name of the model you want to pull (e.g., cogito:14b), make sure the model you are pulling is compatible with the MCP tooling option. Next, type in the terminal:

ollama pull cogito:14b

The process will take a while depending on the size of the model, but when it finishes type in the terminal:

ollama list

if everything went well, you should see the model you have pulled from Ollama. In my case cogito:14b.

Step 3: End-user interface configuration

We are going to use Librechat as the end-user interface.

In the OMCP project, navigate to the directory where the main.py file is located, go to the function def main() and change the transport from stdio to sse.
```
def main():
"""Main function to run the MCP server."""

  mcp_app.run(
      transport="sse", #before was stdio
  )
```
In the same directory where main.py is located, run the following command:
```
python main.py
```
You should see something like this in the terminal:
```
INFO:     Started server process [96250]
INFO:     Waiting for application startup.
INFO:     Application startup complete.
INFO:     Uvicorn running on http://0.0.0.0:8000 (Press CTRL+C to quit)
```
This means that we are exposing our MCP Tool in the port http://0.0.0.0:8000 so other services can consume it.
Download and install Docker Desktop. Once Docker is installed, open Docker Desktop to ensure it is running.
In a separate terminal or IDE window, clone the Librechat repository:
```
git clone https://github.com/danny-avila/LibreChat.git
```
In the Librechat repository, navigate to the project directory and create a configuration .env file, you can create the file by:
```
cp .env.example .env
```
In the same project directory, create a .yaml file, by:
```
cp libreachat.example.yaml librechat.yaml
```

Add the following code at the end of the librechat.yaml file we created above:

# MCP servers
 mcpServers:
   omop_mcp:
     # type: sse # type can optionally be omitted
     url: http://host.docker.internal:8000/sse
     timeout: 60000  # 1 minute timeout for this server, this is the default timeout for MCP servers.

In the project directory, run:

docker compose up -d

If successful, you should see something like this:

[+] Running 5/5
 ✔ Container vectordb          Started
 ✔ Container chat-meilisearch  Started
 ✔ Container chat-mongodb      Started
 ✔ Container rag_api           Started
 ✔ Container LibreChat         Started

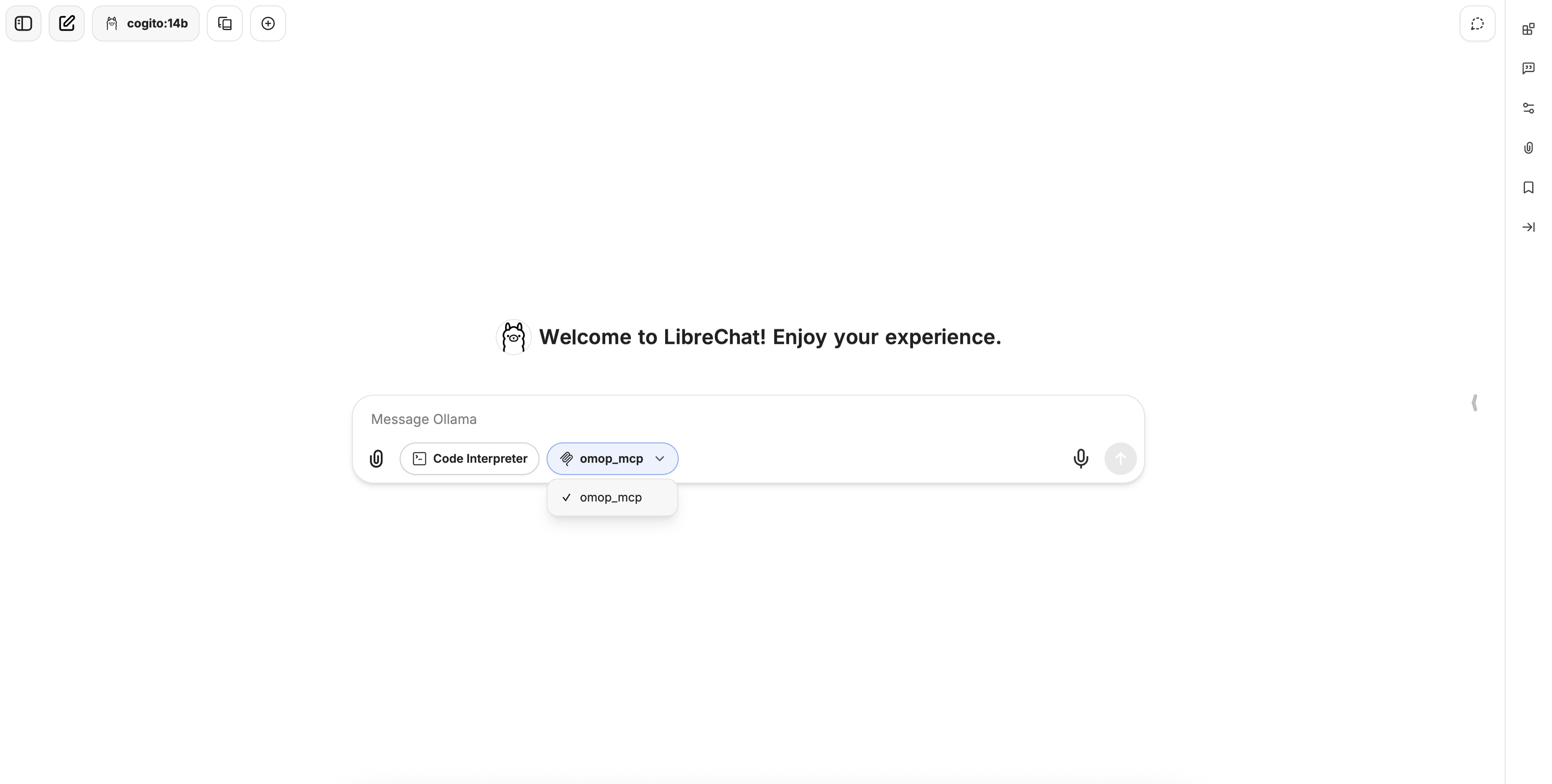

Finally, go to the browser and type localhost:3080, if it is the first time using Librechat, you need to create an account. Then select the model you pulled, in my case cogito:14b and in the chat, just next to the Code Interpreter you should see the MCP Tool, click on it and select omop_mcp.

You should see something like this:

Troubleshooting 🔧

Common Issues

DuckDB Connection Problems

If you encounter errors connecting to the DuckDB database:

Verify the file path in your connection string is correct
Ensure the database file exists at the specified location
Check permissions on the database file

Python Version Issues

OMCP requires Python 3.13+. To check your Python version:

python --version

Claude Desktop Integration Issues

If Claude Desktop doesn't recognize the OMCP server:

Verify the configuration file is in the correct location
Ensure the path to main.py is correct
Restart Claude Desktop

Getting Help 💬

If you encounter issues not covered here:

Open an issue on our GitHub repository
Join our community discussions
Check the FAQ section in our documentation

Next Steps 👣

Now that you have OMCP installed and configured:

Explore the Contributing Guidelines if you'd like to help improve OMCP
